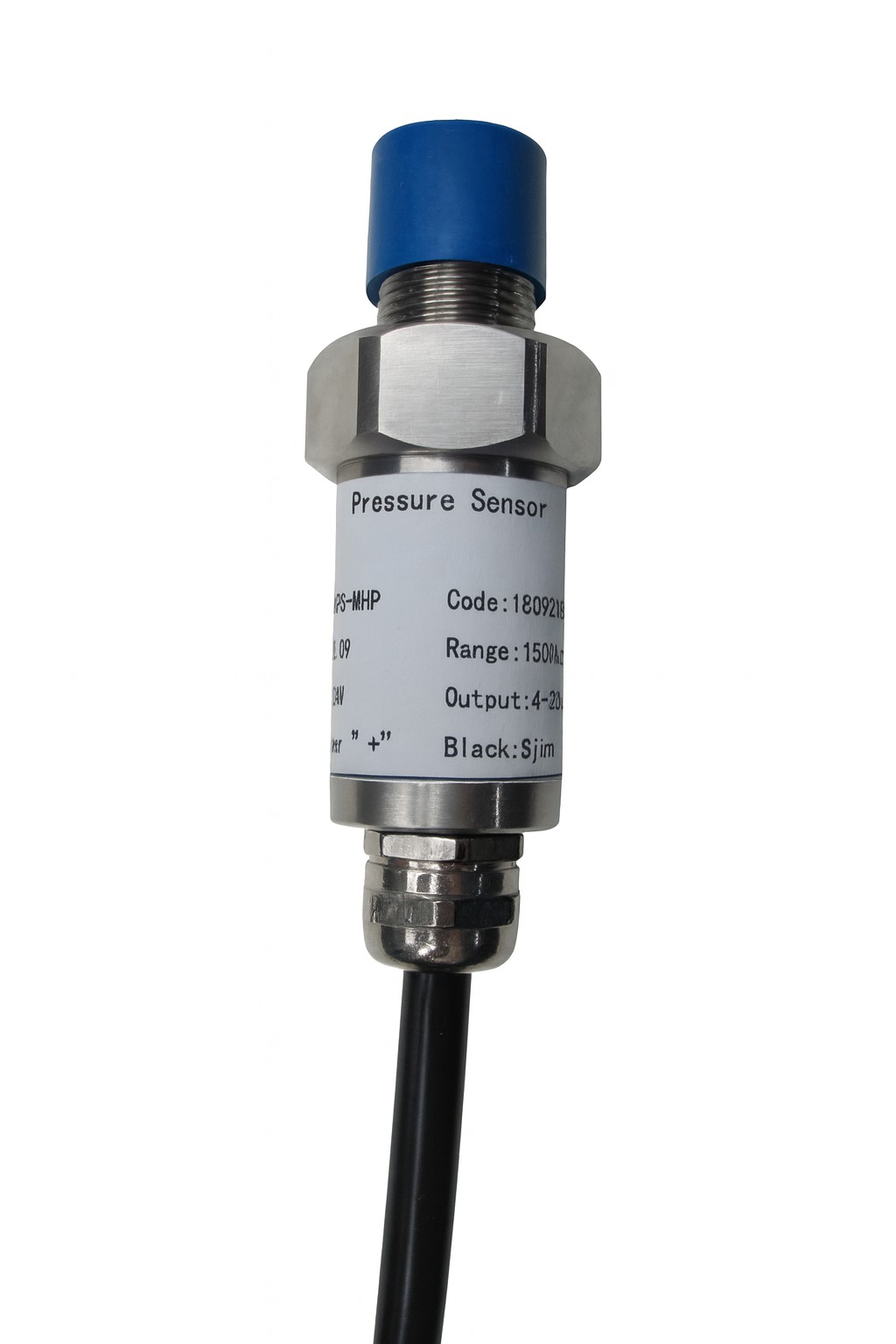

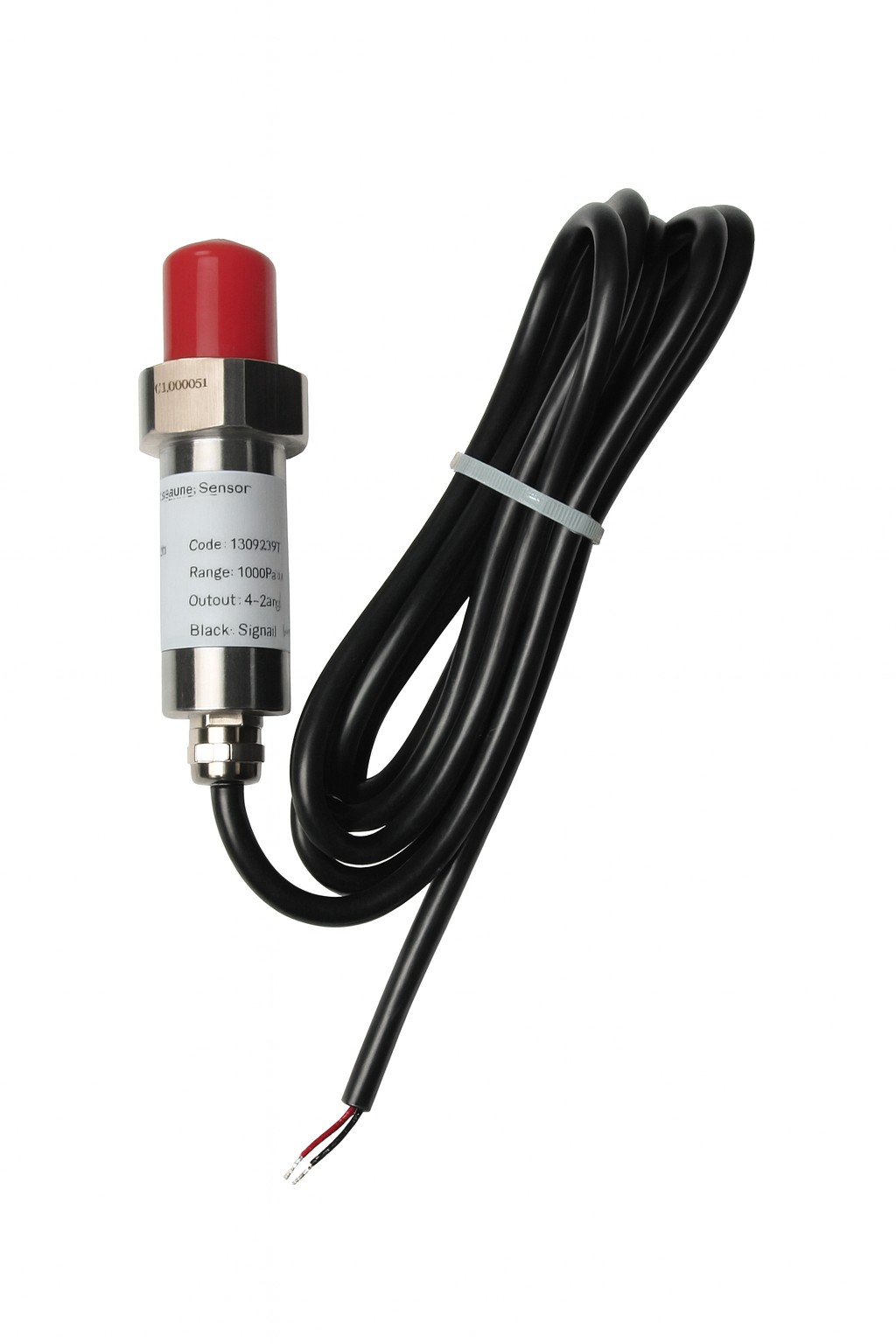

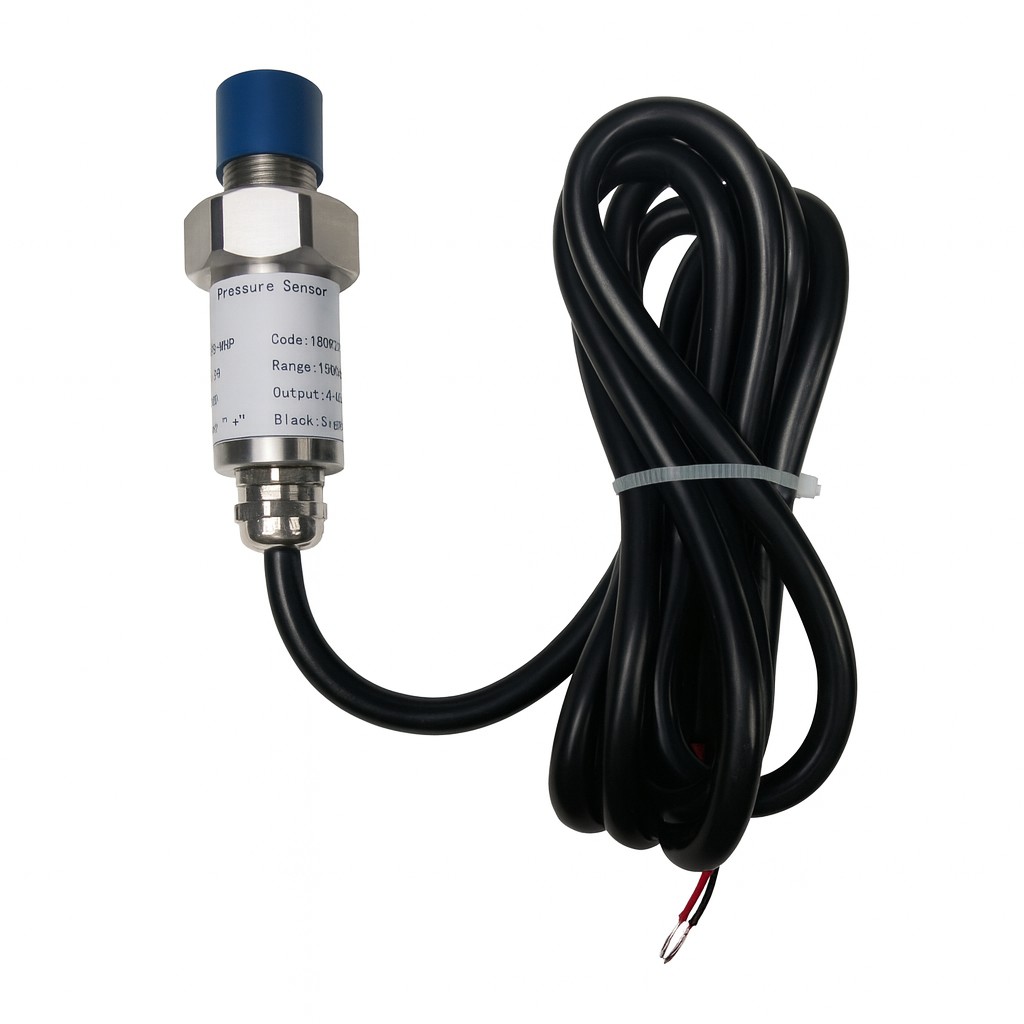

High-Pressure Sensor for Drilling & Pipelines | Up to 30,000 psi | CNPS

The sensor measures process pressure continuously in drilling rigs and pipelines, converting it into digital signal outputs in various formats that integrate seamlessly with control systems. It supports wireless data transmission for remote monitoring and centralized pressure management across rigs and pipelines, and detects abnormal pressure changes to trigger early warning alarms.

• High-precision measurement with ±0.1% FS accuracy — Dependable pressure data for critical safety and process decisions.
• Pressure range up to 30,000 psi — Covers applications from low-pressure pipeline monitoring to high-pressure drilling.
• Working temperature up to 200°C — Operates in extreme thermal environments.
• Corrosion-resistant stainless steel casing — Withstands corrosive fluids in oil, gas, and chemical environments.
• Digital signal output in various formats — Seamless integration with control systems.
• Remote monitoring with wireless data transmission — Enables centralized pressure management across drilling rigs and pipelines.
• Early warning alarm — Instantly detects abnormal pressure changes to prevent blowouts or leaks.
• Low-maintenance self-calibrating electronics — Reduces service downtime and extends operating time.

Summary: The pressure sensor combines a stainless steel housing with advanced electronic components to convert process pressure into stable digital signals. It monitors pressure continuously and compares readings in real time, triggering early warning alarms when abnormal changes are detected.

Steps

• The sensor is mounted on the drilling rig or pipeline at the monitoring point.
• Advanced electronic components capture the process pressure in real time.
• Signal conditioning delivers digital data in various formats for the control system.
• Optional wireless transmission enables remote, centralized pressure management.
• Abnormal pressure changes trigger early warning alarms to prevent blowouts or leaks, while self-calibrating electronics minimize maintenance.

• Drilling and pipeline operations in oil and gas — Real-time pressure data supports safe, efficient, and cost-effective operations.
• Low-pressure pipeline monitoring to high-pressure drilling — Pressure range up to 30,000 psi covers the full spectrum of field applications.
• Corrosive fluids in oil, gas, and chemical environments — Corrosion-resistant stainless steel casing handles aggressive media.
• Companion products - MWD drilling tools, mud logging unit, fiberglass tubing — Part of a complete CNPS oilfield instrumentation portfolio.
• Blowout prevention and leak detection — Early warning alarms on abnormal pressure changes protect personnel and assets.

The sensor is designed for compatibility with standard drilling rigs, pipelines, and digital monitoring platforms. Digital signal outputs in various formats provide real-time data that integrates seamlessly with control systems, and wireless data transmission supports centralized pressure management across multiple rigs and pipelines.

• Proven on-site performance — CNPS pressure sensors have proven on-site performance in drilling and pipeline operations.
• Lower downtime, longer asset life — Corrosion-resistant materials and compatibility with existing systems help operators reduce downtime and extend asset lifespan.
• Customized solutions with global support — CNPS offers customized pressure sensor solutions for unique oilfield needs with global technical support.
• Built for extreme environments — Robust, durable design withstands extreme temperatures, high pressures, and corrosive fluids.
