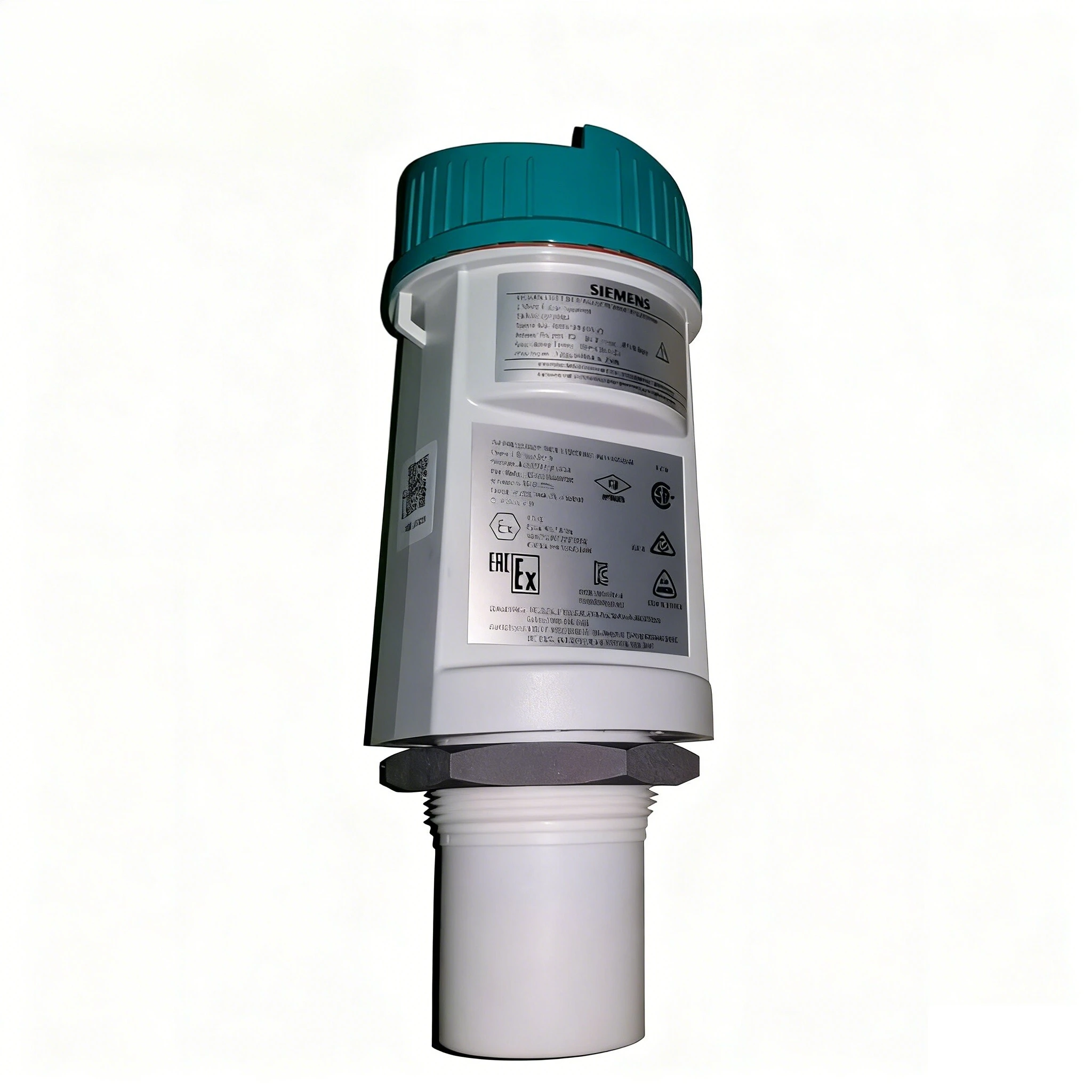

Ultrasonic Level Sensor for Mud Pits, Tanks & Sewage | Non-Contact | CNPS

The sensor continuously measures the level of liquids and solids without contacting the medium, using ultrasonic sensing with built-in temperature compensation and advanced signal filtering. It outputs a 4-20 mA analog industrial signal for direct connection to control systems, and is available in an intrinsic safety / explosion-proof certified version suitable for hazardous areas.

• Non-contact ultrasonic measurement with no moving parts — Extremely low maintenance cost and long service life with fewer service interruptions.
• Measurement range 0.25 - 5.00 m (mud logging model) — Covers mud pit and tank level monitoring; model-dependent ranges extend further (confirm by model).
• Accuracy ±0.5% of full scale — Dependable level data for inventory and safety decisions.
• Built-in temperature compensation and advanced signal filtering — Stable, accurate readings even with dust, steam, foam, and turbulence.
• Wide operating temperature -40°C to +60°C, humidity resistance 5-95% RH — Rated for outdoor industrial and municipal environments.
• IP67 protection rating — Robust housing and corrosion-resistant materials for chemical tanks and silos.
• Quick installation with just a few tools — Simply align the sensor above the mud pit or tank and install.
• Intrinsic safety / explosion-proof certified models (as documented) — Suitable for hazardous areas such as volatile drilling sites.

Summary: The sensor is mounted above the medium - such as a mud pit, storage tank, or open channel - and measures level without any contact with the liquid or solid. Built-in temperature compensation and advanced signal filtering maintain accuracy even when dust, steam, or foam interfere with the measurement environment.

Steps

• Mount the sensor above the medium using just a few tools, aligned over the mud pit, tank, or channel.
• Ultrasonic signals are transmitted toward the medium surface and the reflected signal is processed to determine the level, with no contact with the medium.
• Built-in temperature compensation corrects for environmental temperature effects.
• Advanced signal filtering suppresses errors caused by foam, steam, and turbulence.
• A 4-20 mA analog output delivers continuous level data to the control system or mud logging equipment.

• Mud logging - mud pit level monitoring — Product listed as 'CNPS Ultrasonic Level Sensor (Mud Logging)' for continuous pit level tracking.
• Drilling operations — Stable level data helps operators prevent overflow, slurry loss, and equipment shutdown.
• Sewage treatment — Precise non-contact level measurements for sewage tanks and open channels; stable operation of municipal sewage treatment plants.
• Chemical storage tanks and silos — Overflow and leakage prevention with sturdy, corrosion-resistant construction.
• Industrial, municipal, and warehousing applications — Level measurement for liquids, bulk solids, and wastewater.

The sensor provides a 4-20 mA analog industrial system output for direct connection to control systems, PLCs, and mud logging equipment, with multiple integration options to fit existing infrastructure. Globally compliant design and robust protection capabilities support deployment across industrial, municipal, and warehousing sites.

• Over 20 years of process instrument experience — CNPS has over 20 years of experience in the field of process instruments.
• Globally compliant with robust protection — Sensors are globally compliant, feature robust protection capabilities, and offer multiple integration options.
• Longer service life — No moving parts ensure a longer service life and fewer service interruptions.
• Proven across industries — Deployed from chemical storage tanks and wastewater treatment plants to mud pit monitoring on drilling sites.
