Product Overview

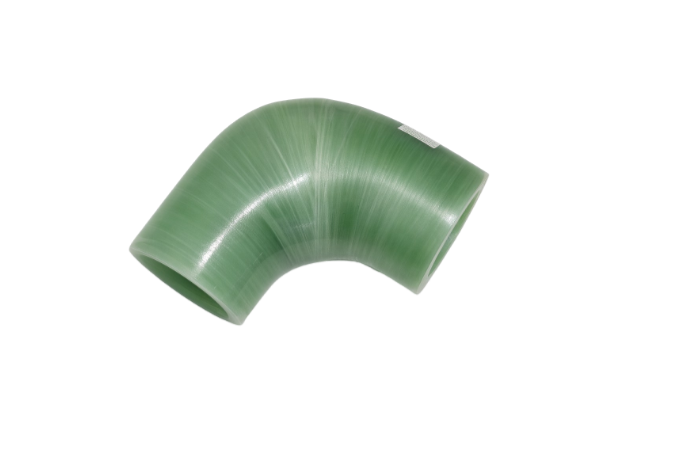

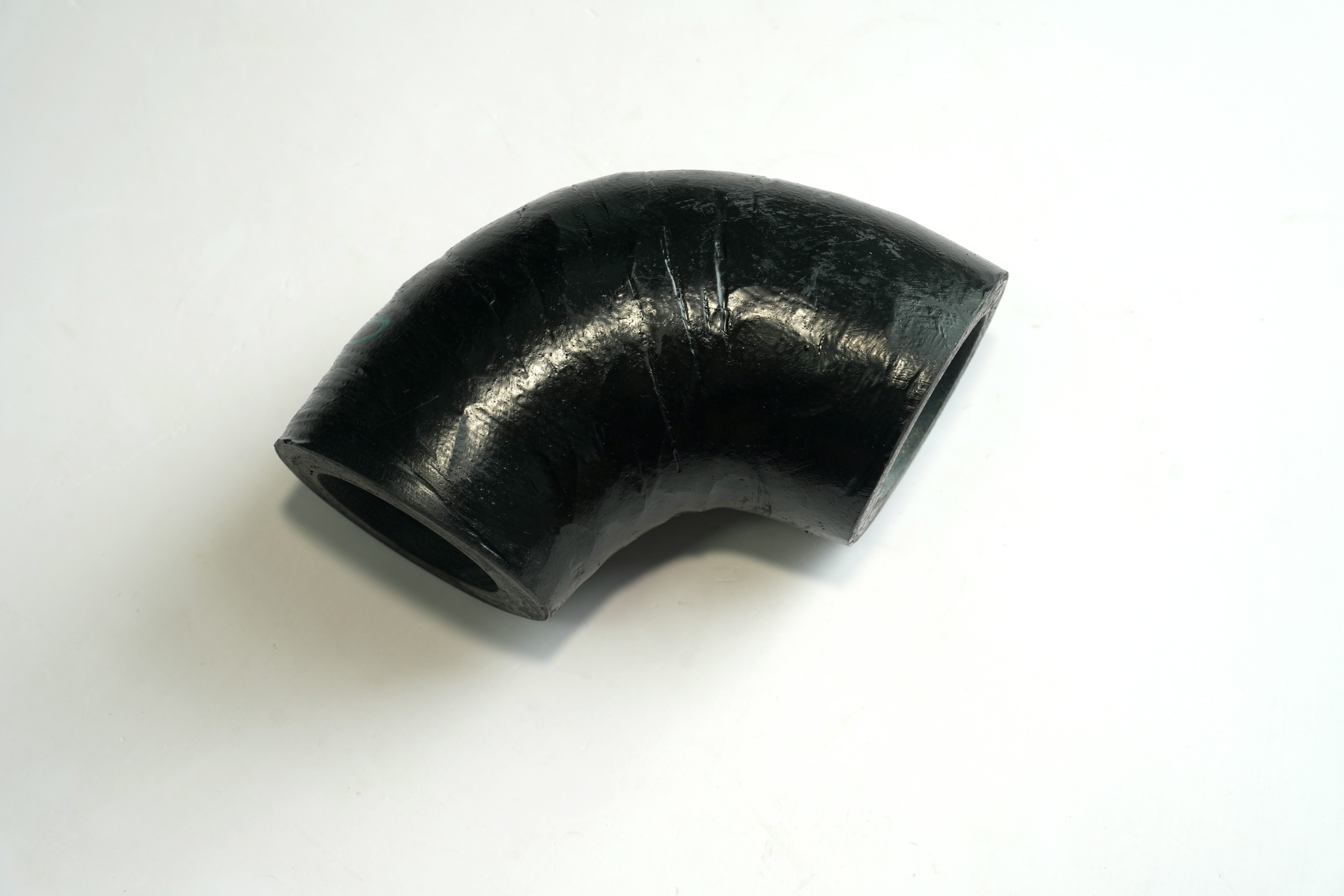

CNPS fiberglass elbows are high-strength fiberglass elbow fittings made from lightweight, high-strength composite materials that resist corrosive chemicals, seawater and high pressure. They are approximately 60% lighter than steel fittings, are offered in standard 45 and 90 degree angles with customized options available upon request, and provide a design service life exceeding 25 years. The precise molding process minimizes turbulence and pressure loss, enhancing system efficiency while reducing energy consumption and prolonging pump and valve service life. The elbows are compatible with glass fiber and composite pipes.
Why Choose Fiberglass Elbows?
- Approximately 60% lighter than steel elbows, making installation and transportation much more convenient.
- Standard 45 and 90 degree elbows with customized options available upon request.
- Corrosion-resistant against salt water, acids and industrial chemicals.
- Precise molding minimizes turbulence and pressure loss for higher system efficiency.
- Design service life exceeding 25 years in harsh environments.
- Compatible with glass fiber and composite pipes, or metal piping via appropriate couplings and adapters.
Standard angles of 45 and 90 degrees are offered, with customized angles, sizes and wall thicknesses available upon request. The elbows are compatible with glass fiber and composite pipes, and can connect to metal piping systems using appropriate couplings and adapters. A full range of glass fiber fittings - elbows, tees, reducers and couplings - is available for complete piping systems.
- Corrosion-resistant: withstands erosion from salt water, acids and industrial chemicals.
- Lightweight design: approximately 60% lighter than metal elbows, making installation and transportation much more convenient.
- Standard angles: 45 and 90 degree elbows, with customized options available upon request.
- Extremely long service life: designed for over 25 years in harsh environments.
- Flow efficiency: precise molding minimizes turbulence and pressure loss, enhancing system efficiency, reducing energy consumption and prolonging pump and valve service life.
- Customizable: different sizes, wall thicknesses and angles to match pipeline requirements.
- System compatibility: compatible with metal or composite pipes using appropriate couplings and adapters.
Technical Specifications
| Item | Specification |
| Material | Fiberglass reinforced composite |
| Type / Angle | 45 degrees and 90 degrees |
| Connection Type | Glass fiber and composite pipes; metal systems via appropriate couplings and adapters |
| Service Life | Over 25 years |
🔧Connection / Installation
Fiberglass elbows join glass fiber and composite pipes using the same jointing method as the pipeline (adhesive-bonded socket, bell-and-spigot or flanged connections). When transitioning to metal systems, appropriate couplings and adapters are used. Clean and prepare the joint surfaces, apply the adhesive per CNPS instructions, align the fitting to the required direction, and allow full cure before pressure testing.
⚙️Applications
- Industrial, offshore and municipal applications
- Chemical environments with corrosive process media
- Marine environments where steel elbows rust and have high maintenance costs
- Sharp pipe turns using 90 degree elbows
- Smooth direction conversion using 45 degree elbows
💎Project Customization
CNPS fiberglass elbows can be customized in angle, size and wall thickness to match the pipeline routing and pressure requirements. Send your pipe diameter, required angle and service media to CNPS so the correct elbow configuration can be confirmed.
🎨Why CNPS
- Complete fittings family: elbows, tees, reducers and couplings from one supplier.
- Documented performance: weight reduction and service life verified in CNPS product documentation.
- Corrosion-first engineering for chemical, marine and offshore environments.
- Custom-angle and sizing support backed by CNPS engineering service.
